Yn27c Pionjar 120 Jack Hammer Petrol Rock Drill Machine

Product Categories

Hangzhou Kaishan Air Compressor Co., Ltd

Contact Now

Name: Yn27c Pionjar 120 Jack Hammer Petrol Rock Drill Machine
Brand: others
Price: 300 USD

Model Number : YN-27C

Place of Origin : Zhejiang China

MOQ : 1pcs

Price : $300-$400/piece

Payment Terms : Western Union, L/C, T/T

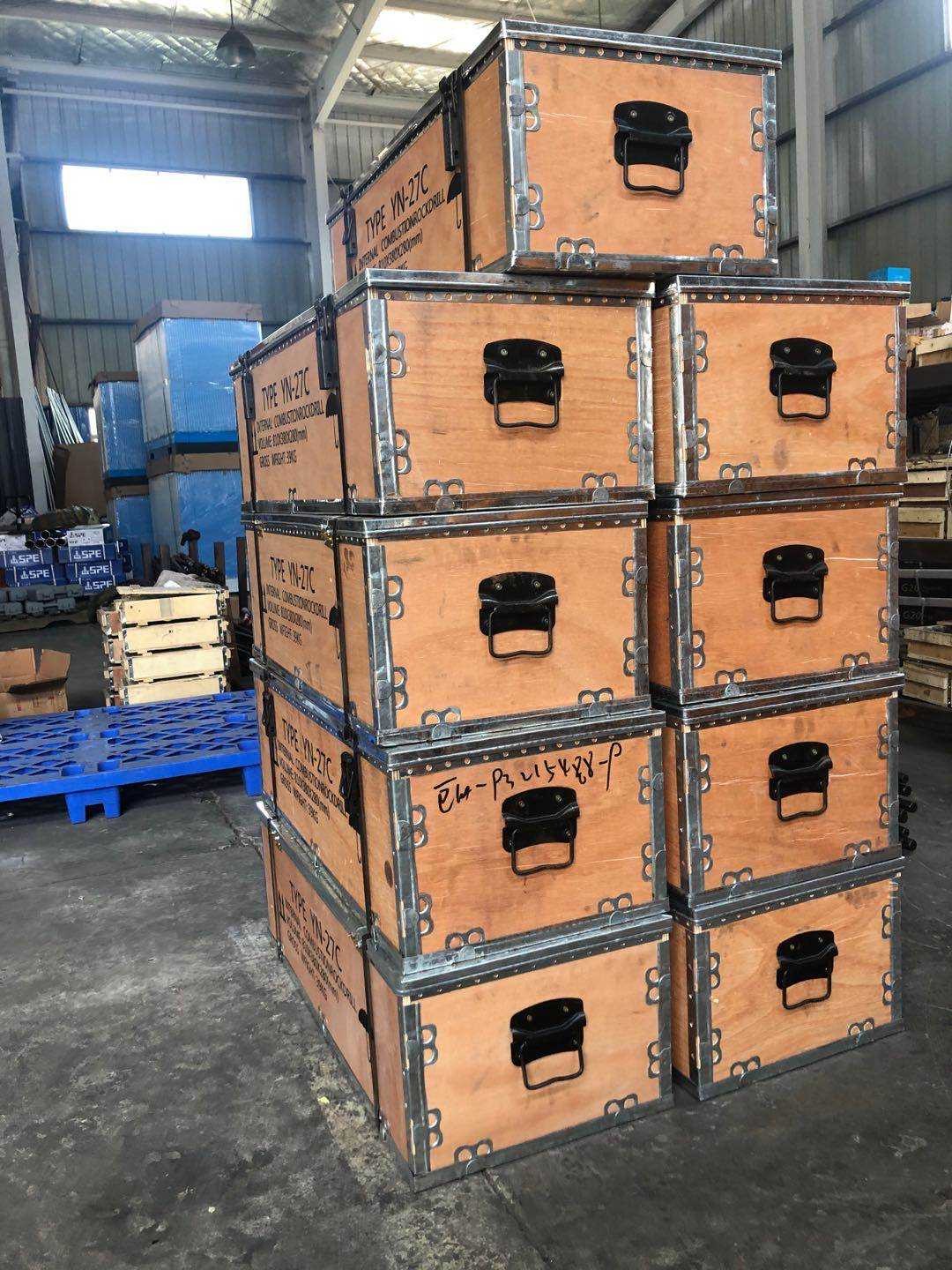

Packaging Details : wooden case

Brand Name : others

Certification : ISO9001

Contact Now

yn27c pionjar 120 jack hammer petrol YN27C rock drill machine

Inernal Combustion Rockdrill
model name	YN27C
Weight	27kg (including wooden case:41KG)
dimension	746315229mm (including wooden case:810380280mm)
Fuel consumption	less than 0.12L/min
type of engine	single cylinder, air cooled two strokes
Cylinder diameter*stroke of piston	58*70mm
Rotating speed of engine	more than 2450r/min
displacement of engine piston	185cm^3
type of carburetor	hand needle valve, no floating type
Ignition system	controllable silicon/ contactless system
Drilling speed	more than 250mm/min
Max drilling depth	6M
Tank capacity	more than 1.14L
mixture ratio of gasoline and lubricating oil(in volumes)	8∶1
end of drill rod dimensions	22*108mm
Rotating speed of drill rod	more than 200r/min
Clearance of spark plug	1.5mm

Internal Combustion Rock Drill Packing list
Serial No.	Designation	Quantity
A. Machine & Technical document with machine
1	Internal Combustion Rock Drill	1 Unit
2	Service manual	1 pc
3	Certificate	1 pc
4	Packing list	1 pc
B. Spare Parts attached the machine
1	Hexagonal seal ring	2 pcs
2	O-ring 92*2.6	1 pc
3	Olive spring	6 pcs
4	Needle	6 pcs
5	Valve plate	2 pcs
6	Conical spring	2 pcs
7	Cylinder pad	1 pc
8	Spark plug	1 pc
9	Paper pad for Contrl Part	1 pc
10	Upper ring of hammer piston	2 pc
11	Lower ring of hammer pistpon	1 pc
12	Lower ring for engine pistpon	2 pcs
13	Upper ring for engine piston	1 pc
14	Fuel pipe	1 pc
15	O-ring 30*3.1	1 pc
16	Controller	1 pc
17	Ignition Coil	1 pc
18	Starter wire rope	1 pcs
19	Check valve plate	2 pcs
20	Pad for Check valve plate	2 pc
21	Paper pad for Magneto bed plate	1 pcs
22	Paper pad for Drill chuck cover	2 pc
23	Drill rod 0.6m	1 pc
24	Drill bit ø32	1 pc
C. Accessory tools
1	Inner hexagonal wrench S=6	1 pc
2	Spark plug socket wrench S=21	1 pc
3	Tool bag	1 pc
4	Needle for poking the air way	1 pc
5	Funnel	1 pc
6	Double off-set ring spanner S=22*19	1 pc
7	Double head wrench S=10*13	1 pc
8	Sleeve wrench S=13	1 pc
9	Screw driver 75	1 pc
10	"T" Wrench S=81012	1 pc
11	Slider bar of socket wrench	1 pc
D. Packing Boxes
1	Packing Boxes	1 pc

Yn27c Pionjar 120 Jack Hammer Petrol Rock Drill Machine
