Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Silk KG310

Name: Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Silk KG310
Brand: Silk
Price: 12000 USD

Buy cheap Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Silk KG310 product

Brand Name : Silk

Model Number : KG310/KG310H

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1 set

Price : $12000 -19000 / Set

Supply Ability : 10 set per month

Delivery Time : 10-30 days

Packaging Details : Nude packing or as per customer's request, suitable for long transportation.

Model : Down the hole drilling rig

Drilling Diameter : 80-115mm hole

Push Way : Motor.Chain

Drill bit : Φ90,Φ100, Φ110 low pressure bit

Drilling depth : 20-25m

Usage : Coal,Ore,Drill holes,drill rock

Engine : diesel engine,Diesel Power

Name : Used Borehole Drilling Machine For Sale

Contact Now

Silk KG310 Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Uses

Easy Operation 20m Depth Rock Hydraulic Earth Mining Drilling Machine

The KG310 / KG310H down the hole drlll rig for open use is an improved device in compllance with national regulations on environmental protection. Equipped with the Yuchai double-Cylinder engine ( Chlna Ⅲ) , the drill rig meets the national standards for emissions and environment. The flexible derricking mechanism is suitably qualifued for horizontal drilling at a low level. The hydraulic system has been improved , leading to increased system flow and rotary speed. Moreover, the hydraulic cylinder has been optimized, thus making it more reliable; and the additional ring ( plate ) makes handling and lifting easier.

Model	KG310	KG310H
Weight	6800kg	4200KG
Size of drill machine	6800 * 2200 * 2850 mm	4650 * 2500 * 2200 mm
Diameter of hole	Φ80-105mm
Optium drilling depth	20m
Rotation speed	0-120r/min
rotation torque	1250N·m
Lift power	18000N
Feed way	oil cylinder-chain
Feed distance	2670mm
Walk speed	0-2.0Km/h
Gradeability	≤30°
Ground clearance	250mm
Swing angle of boom	Left 100°, right 45°, total 145°
Pitch angle of drill boom	Down 145°, up 55°, total 195°
Sliding carriage suppling length	900mm
Power	Yuchai Power YCCA1336-45(33.1KW 2400R/min)
Drill rod	Φ60x2mm
Air consumption	7-15m³/min
Recommand air compressor	LGCY-12/10 , LGCY13/13

Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Silk KG310

Easy Used Control Panel

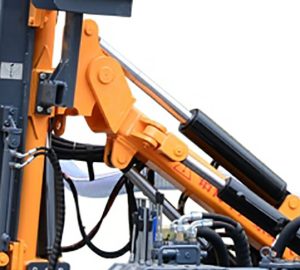

High torque gyrator

Stable hydraulic system
Steel track adaptable to all terrains

Techincal parameter

Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Silk KG310
